Low Maintenance, Durable Construction, Easy Installation
Low cost of ownership
Description
Non-Contact Level Measurement. Built for the Real World.
The Ranger Plus™ LTRP Ultrasonic Level Transmitter delivers accurate non-contact level measurement in two range configurations: the LTRP-10 with a 4 to 120 inch measuring range, and the LTRP-35 with a 12 to 420 inch measuring range. With three simultaneous analog outputs — 0–10 VDC voltage, 4–20mA sourcing current loop, and 4–20mA sinking current loop — plus two fully configurable solid-state switches, the Ranger Plus™ replaces multiple instruments in a single compact unit.
The sensor is housed in chemically inert PVDF sealed housing, rated NEMA 4X, NEMA 6P, and IP68, making it well suited for corrosive, sticky, or dirty media across a wide range of industrial environments. Both switches are configurable as NPN or PNP with adjustable setpoint, hysteresis, window mode, ON/OFF time delays, and loss-of-target response — providing alarm and control functionality without additional external relays or controllers.
Configuration is handled through the free Ranger Plus™ PC software via RS-485 serial interface. The software enables full parameter control, real-time sensor viewing, strip chart analysis, statistics, data logging, and rapid sensor cloning across multiple units. Up to 32 sensors can be networked on a single RS-485 bus with SYNC functionality to eliminate crosstalk in close-proximity installations.
Temperature compensation is built in and enabled by default. Adjustable filters — including input rejection, running average, boxcar average, and distance limiting — allow the sensor to handle turbulence, mixer blades, and other real-world interference. All settings are stored in non-volatile memory. An optional CONNEX 3D cellular modem enables wireless remote monitoring with scheduled and event-driven data transmission.
specifications
Ultrasonic level measurement without compromise
-
Performance
Active Measuring Range LTRP-10: 4" – 120"; LTRP-35: 12" – 420"
Maximum Range LTRP-10: 10 feet; LTRP-35: 35 feet
Repeatability Greater of ±0.03" (0.76mm) or 0.1% of target distance
Resolution Digital: 0.0034" (0.086mm); Analog: 4099 steps (0–10 VDC or 0–20 mA)
Update Rate 50ms, software adjustable
Compensation Temperature compensated
-
Physical
Case Material PVDFProtectionNEMA 4X, NEMA 6P, IP68
Transducer Rugged piezoelectric
Process Mount LTRP-10: 1.5" NPT; LTRP-35: 2" NPT
Cable PUR jacket, 6–6.5 ft (2m) standard
Configuration Stored in non-volatile memory
-
Electrical
Input Power 10–30 VDC, 50mA max
Temperature -40° to 158°F (-40° to 70°C)
Humidity 0–100% operating
Voltage Output 0–10 VDC or 0–5 VDC, 10mA max
Current Loop 14–20mA sourcing, max loop 500Ω
Current Loop 24–20mA sinking, max loop 500Ω
Sinking Switch 150mA max @ 40 VDC max
Sourcing Switch 150mA max @ input voltage
Serial Interface RS-485, software adjustable
Adjustment Ranger Plus Software
-
Pressure Ratings
LTRP-10-N 4"–120" range, no mounting option
LTRP-10-T 4"–120" range, threaded jam nut (1.5")
LTRP-10-F 4"–120" range, flange mount (consult factory)
LTRP-35-N 12"–420" range, no mounting option
LTRP-35-T 12"–420" range, threaded jam nut (2")
LTRP-35-F 12"–420" range, flange mount (consult factory)
Certifications
Ultrasonic level measurement without compromise
-
Five-Year Warranty
FLO-CORP's industry-leading warranty. The only manufacturer to offer this guarantee on all products.
-
Pre-Calibrated
Every unit is factory calibrated and verified for your specified application before shipment.
-
NPT Compliant
We don’t patch problems. We solve them at the root and build systems that fuel real, repeatable growth.
-
Quality Verified
Tested and verified by FLO-CORP's engineering team to operate as specified from day one.
-
Multi-Unit Output
Available in five different signal units to ensure best resolution for your application.
-
Calibration Available
FLO-CORP offers professional re-calibration services to maintain accuracy throughout the product's service life.
Similar products
Built for the toughest environments
-

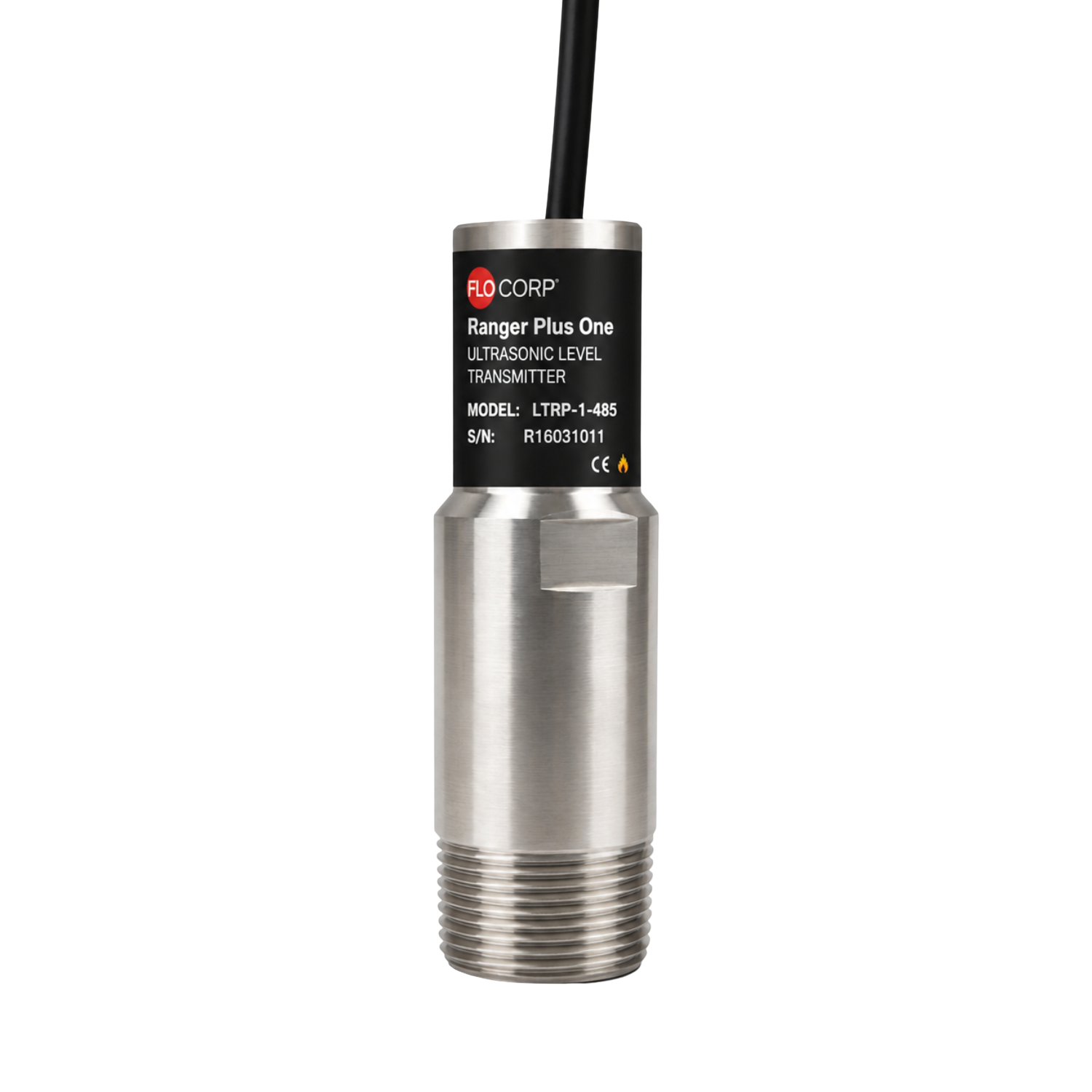

Ranger Plus One™ LTRP-1 Ultrasonic Level Transmitter
Level Transmitter
A rugged ultrasonic level transmitter with a maximum range of 14 feet (4.3 meters), built for durability and ease of use across demanding industrial environments.
-

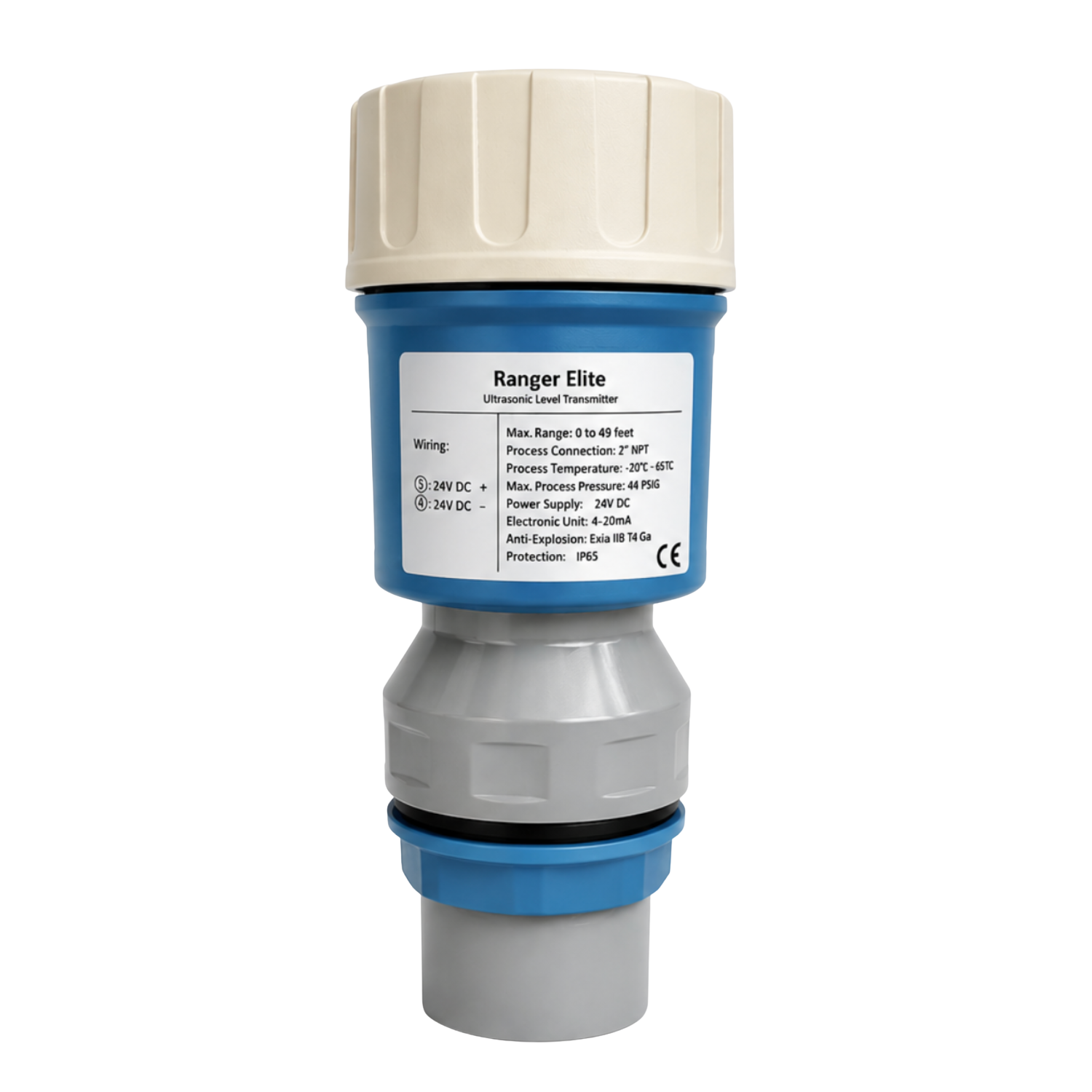

Ranger Elite™ LTRE Ultrasonic Level Transmitter
