Products used in Minerals and Mining Applications

• Part No. LTT1-3G

• 5-year warranty

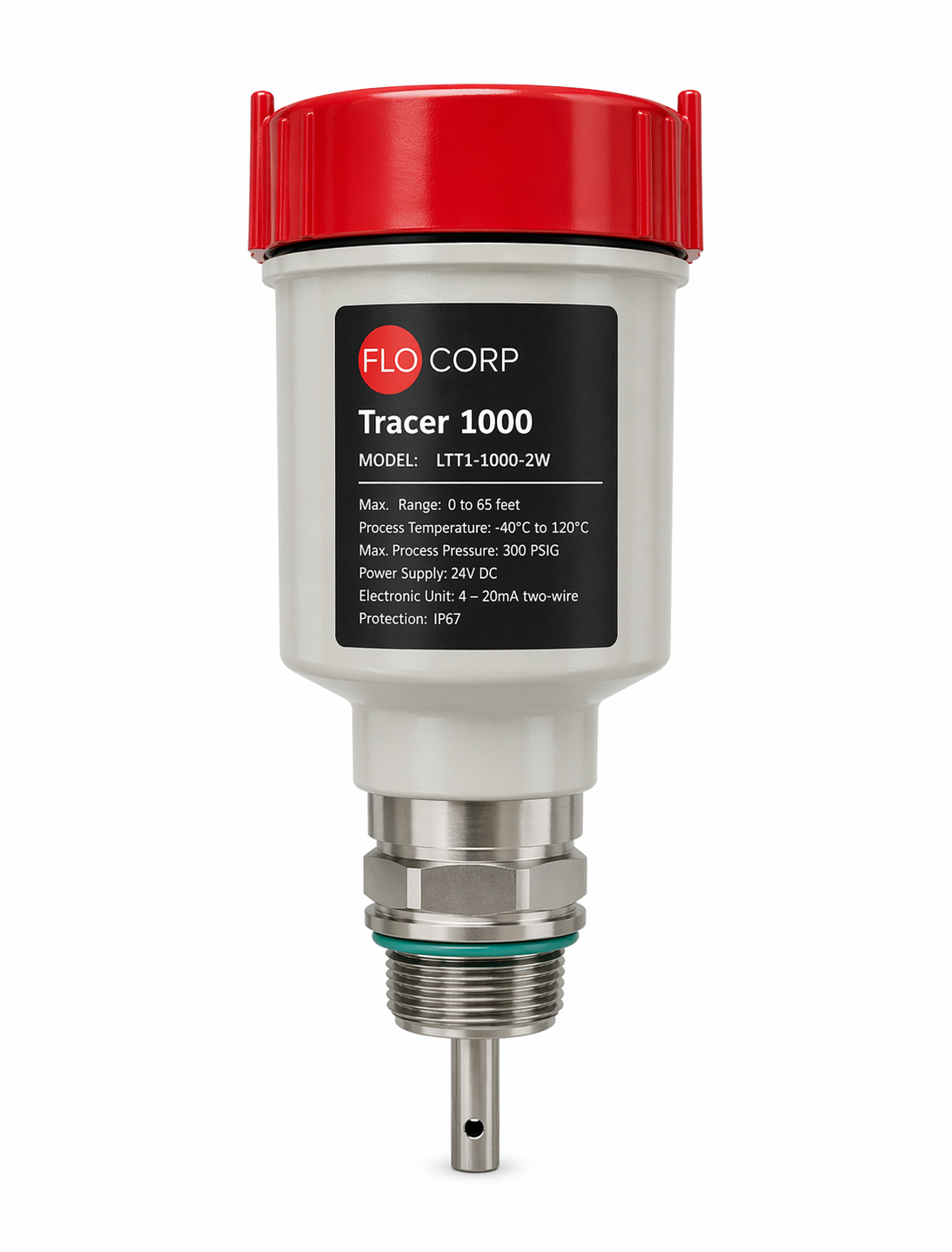

The Tracer 1000 3G™ is a guided wave radar level transmitter that accurately measures the level of liquids, solids, powders, sludge, and bulk materials in tanks and vessels up to 60 feet 8 inches deep. It works by sending a radar pulse down a probe and measuring the time it takes to reflect back, converting that into a precise level reading. The technology is unaffected by pressure, temperature, foam, dust, or changes in the material being measured.

• Works on Almost AnythingAccurately measures liquids, solids, sludge, powders, and granules with a minimum dielectric constant of just 1.5, making it suitable for a wide range of materials

• Immune to Process InterferenceMeasurement is not affected by pressure, temperature, viscosity, vacuum, foam, dust, or probe coating, so you get reliable readings even in difficult conditions

• Simple to Set Up and ConfigureFeatures auto-calibration, an on-device LCD display with four-button menu navigation, and compatibility with HART handheld programmers and PC software for fast commissioning

• Built for Industrial EnvironmentsRated IP66 and NEMA 4X with IECEx intrinsic safety certification, making it suitable for hazardous area installations across a broad range of industries

• Part No. UOCM

• 5-year warranty

The ChannelFlo™ UOCM is an all-in-one ultrasonic flow measurement system for open channels including streams, sewers, rivers, weirs, and flumes. It combines a non-contact ultrasonic level sensor with a bright LED process monitor and optional remote monitoring software, all pre-calibrated at the factory for your specific application. The optional eXmod relay module adds pump control capability for more demanding installations.

• Pre-Calibrated Before It ShipsEvery system is calibrated to your specific application at the factory, so setup in the field is fast and straightforward

• No Contact with the FlowThe non-contact ultrasonic sensor never touches the water, reducing corrosion, build-up, and maintenance over time

• Monitor from AnywhereIncludes DigaLink™ 3.0 software for remote monitoring, email alerts, and data logging from a PC without being on site

• Complete Out-of-the-Box SystemSensor, monitor, and software work together as one integrated solution, with an optional relay module for pump control
