Aerospace Level Sensors and Flow Meters

• Part No. CD3D-RMS

• 5-year warranty

The FLO-CORP CONNEX 3D™ Remote Monitoring System is a powerful, end-to-end remote tank monitoring solution that combines precision measurement, real-time data access, and cloud-based analytics to deliver unmatched visibility into your fluid assets—anytime, anywhere.

• 3D Monitoring TechnologyUnique to FLO-CORP, the CONNEX 3D™ platform integrates Level, Volume, and Environmental diagnostics into one intelligent system, providing a complete "three-dimensional" view of tank performance.

• Universal Sensor CompatibilitySupports a wide range of industry-standard sensors (ultrasonic, radar, pressure, and more), giving you maximum flexibility across applications.

• Cloud-Based Software PlatformThe intuitive web interface offers secure, real-time access to tank levels, historical data, and trend analysis from any device.

• Plug-and-Play SetupPre-configured for fast installation and immediate connectivity, reducing setup time and minimizing technical hurdles.

• Available as a Display Monitor, Cellular Monitor, or Complete System

• 5-Year Warranty

The FLO-CORP CONNEX 3D™ Process Monitoring System delivers flexible local and remote process visibility for industrial applications. Designed to interface with sensors and field devices through analog inputs and RS-485 Modbus communications, CONNEX 3D provides reliable monitoring, alarming, data logging, and process control capabilities.

Whether you need a local display solution, remote cloud-based monitoring, or both, the CONNEX 3D can be configured to meet your application requirements. Available in NEMA 4X enclosures and shipped pre-configured for your application, the CONNEX 3D provides a turnkey monitoring solution that keeps you connected to your process wherever you are.

• Flexible Monitoring OptionsChoose from local display monitoring, remote cellular monitoring, or a complete monitoring system.

• Industrial ConnectivitySupports standard analog inputs and RS-485 Modbus communications for seamless integration with field devices.

• Real-Time Process VisibilityMonitor critical process data locally on-site or remotely from a PC, smartphone, or tablet.

• Turnkey InstallationShipped pre-configured for your application and housed in a rugged NEMA 4X enclosure for reliable operation.

• Part No. CD3D-MI, CD3D-MC

• 5-year warranty

The CONNEX 3D™ Flat screen multichannel monitor conserves space while bringing ease and affordability to your plant floor. Standard analog inputs and outputs, relay outputs and RS-485 Modbus communications. Connex 3D display/monitors come complete with NEMA 4X enclosures, mounted and wired for a turnkey system. AC or DC power available, relays or analog output only, select the correct monitor for your system is easy.

• Flexible Input SupportAccepts 4-20mA, temperature, pulse, digital, and Modbus inputs for versatile process monitoring.

• Advanced Color Display5.7” color display with customizable numeric and bargraph visualization for clear real-time data.

• Scalable I/O ConfigurationSupports up to 28 inputs and 25 relays or 4-20mA outputs depending on system configuration.

• Industrial-Grade ApprovalsMany models are UL & C-UL Listed for ordinary and Division 2 hazardous locations.

• Part No. PDSG1

• 5-year warranty

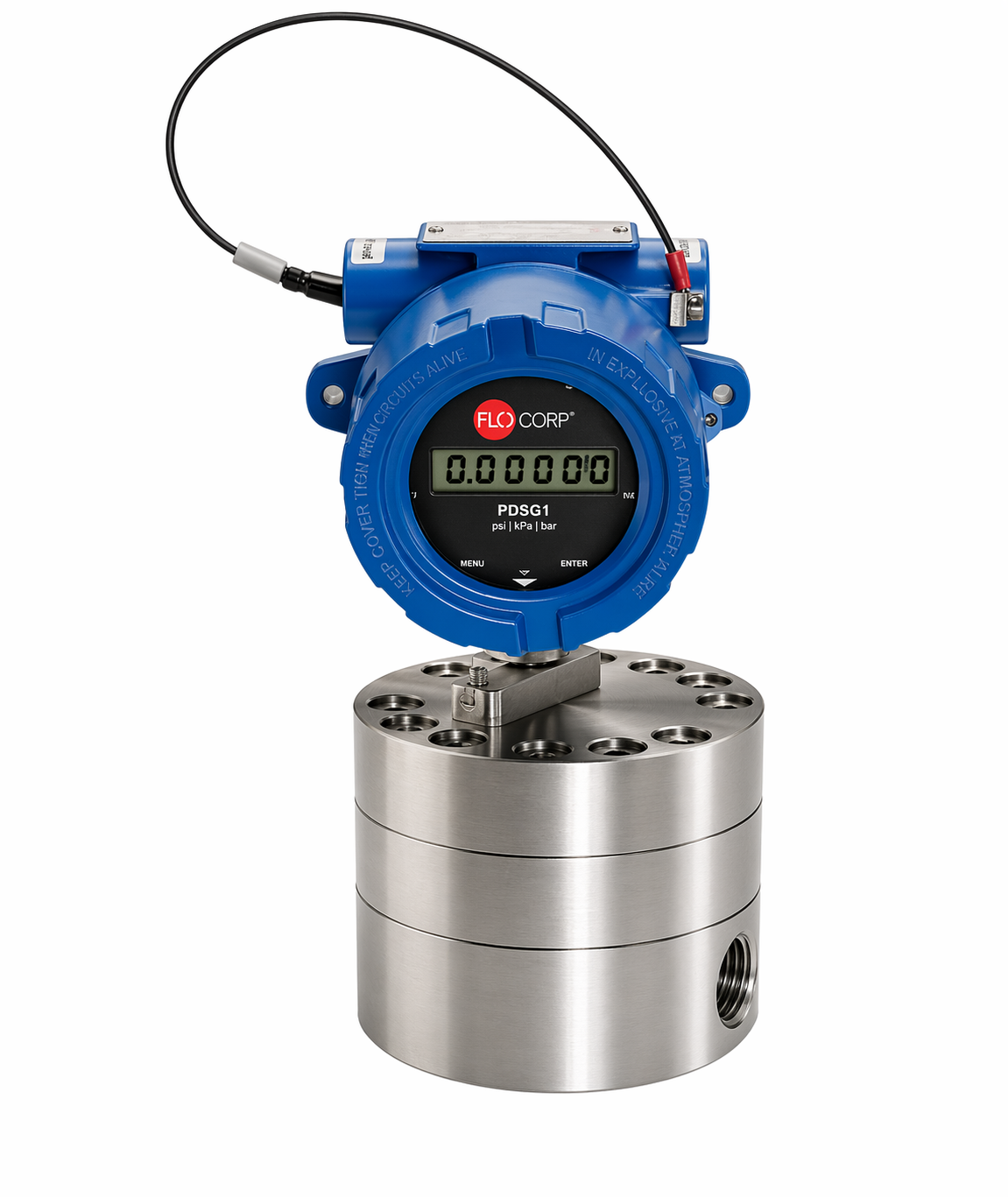

The PDFlo™ PDSG1 is a positive displacement spur gear flow meter that delivers accurate, repeatable measurement of oils, fuels, greases, solvents, and other non-abrasive lubricating fluids. It maintains consistent accuracy even as fluid viscosity changes, making it a reliable replacement for older turbine-style meters. Available in six flow ranges covering 0.003 to 120 GPM, with aluminium and stainless steel body options.

• Accurate Across Changing ConditionsMaintains plus or minus 0.5% accuracy even as fluid viscosity changes, so readings stay reliable without constant recalibration

• Wide Range of Flow RatesSix model sizes cover flow rates from 0.003 to 120 GPM, making it suitable for everything from precise low-flow dosing to high-volume transfer

• Easy to InstallNo straight run piping required upstream or downstream, so it fits into existing systems without major pipework changes

• Built to LastStainless steel gears and bearings with wear-resistant construction keep the meter running accurately over a long service life
