CONNEX 3D™ Multi Channel Monitor

$0.00

  • Part No. CD3D-MC

  • 5-year warranty

The CONNEX 3D™ Flat screen multichannel monitor conserves space while bringing ease and affordability to your plant floor. Standard analog inputs and outputs, relay outputs and RS-485 Modbus communications. Connex 3D display/monitors come complete with NEMA 4X enclosures, mounted and wired for a turnkey system. AC or DC power available, relays or analog output only, select the correct monitor for your system is easy.

  • Flexible Input SupportAccepts 4-20mA, temperature, pulse, digital, and Modbus inputs for versatile process monitoring.

  • Advanced Color Display5.7” color display with customizable numeric and bargraph visualization for clear real-time data.

  • Scalable I/O ConfigurationSupports up to 28 inputs and 25 relays or 4-20mA outputs depending on system configuration.

  • Industrial-Grade ApprovalsMany models are UL & C-UL Listed for ordinary and Division 2 hazardous locations.

  • Part No. CD3D-MC

  • 5-year warranty

The CONNEX 3D™ Flat screen multichannel monitor conserves space while bringing ease and affordability to your plant floor. Standard analog inputs and outputs, relay outputs and RS-485 Modbus communications. Connex 3D display/monitors come complete with NEMA 4X enclosures, mounted and wired for a turnkey system. AC or DC power available, relays or analog output only, select the correct monitor for your system is easy.

  • Flexible Input SupportAccepts 4-20mA, temperature, pulse, digital, and Modbus inputs for versatile process monitoring.

  • Advanced Color Display5.7” color display with customizable numeric and bargraph visualization for clear real-time data.

  • Scalable I/O ConfigurationSupports up to 28 inputs and 25 relays or 4-20mA outputs depending on system configuration.

  • Industrial-Grade ApprovalsMany models are UL & C-UL Listed for ordinary and Division 2 hazardous locations.

Low Maintenance, Durable Construction, Easy Installation

Data Sheet

Low cost of ownership

Description



Your Process. Anywhere. Always.

Built for monitoring, alarming, totalizing, and process control applications, the CONNEX Multi-Channel™ can be configured with multiple relays, analog outputs, Ethernet communications, advanced alarm logic, and programmable timers. This makes it ideal for tank farms, water treatment facilities, OEM systems, and industrial automation.

Request a quote

specifications

Cellular monitoring without compromise

  • Display & Interface

    Display Type 5.7” Color QVGA LCD

    Resolution 320 × 240 pixels

    Screen Capacity Up to 20 screens

    Decimal Places 0 to 15 selectable

    Engineering Units User-selectable or custom

    Function Keys 4 programmable keys

  • Inputs & Outputs

    Maximum I/O Cards 7

    Analog Inputs 4 per card

    Pulse Inputs 4 per card

    Analog Outputs 5 per card

    Supported Inputs 4-20mA, Pulse, Digital, Modbus

    Maximum Relay Cards 6

  • Alarms & Control

    Number of Alarms Up to 64

    Alarm Types High, Low, AND / OR, Interval, Day & Time

    Alarm Modes Latching or Non-Latching

    Internal Buzzer 60 dBA @ 24 in.

    External Horn Support Via relay assignment

    Programmable Timers Up to 30

  • Specifications

    Power 85-265 VAC or 18-36 VDC

    Power Consumption 15 VA

    Operating Temperature -4°F to +140°F (-20°C to +60°C)

    Storage Temperature -22°F to +158°F (-30°C to +70°C)

    Dimensions (WxHxD) 10.85” x 10.85” x 4.87”

    Weight 1.8 lbs (0.82 kg)

REQUEST A QUOTE

Certifications

Cellular monitoring without compromise

  • Five-Year Warranty

    FLO-CORP's industry-leading warranty. The only manufacturer to offer this guarantee on all products.

  • Pre-Calibrated

    Every unit is factory calibrated and verified for your specified application before shipment.

  • NPT Compliant

    We don’t patch problems. We solve them at the root and build systems that fuel real, repeatable growth.

  • Quality Verified

    Tested and verified by FLO-CORP's engineering team to operate as specified from day one.

  • Multi-Unit Output

    Available in five different signal units to ensure best resolution for your application.

  • Calibration Available

    FLO-CORP offers professional re-calibration services to maintain accuracy throughout the product's service life.

Similar products

Built for the toughest environments

  • CONNEX 3D™ CD3D Wireless/Wired Cellular Monitor

    Cellular Monitor

    Wireless cellular process monitor that connects to field devices via RS-485 and transmits data to a cloud-based server

    View product
    CONNEX 3D™ CD3D Wireless/Wired Cellular Monitor

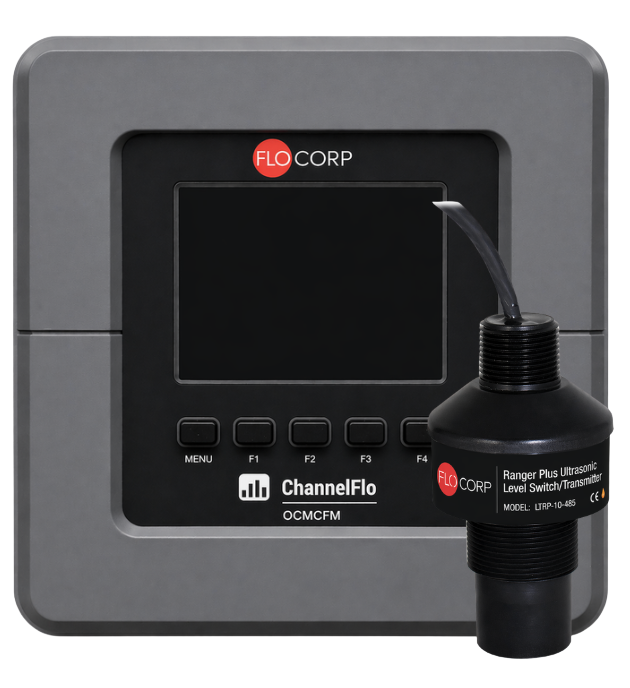

  • ChannelFlo™ Ultrasonic Open Channel Flow Meter
