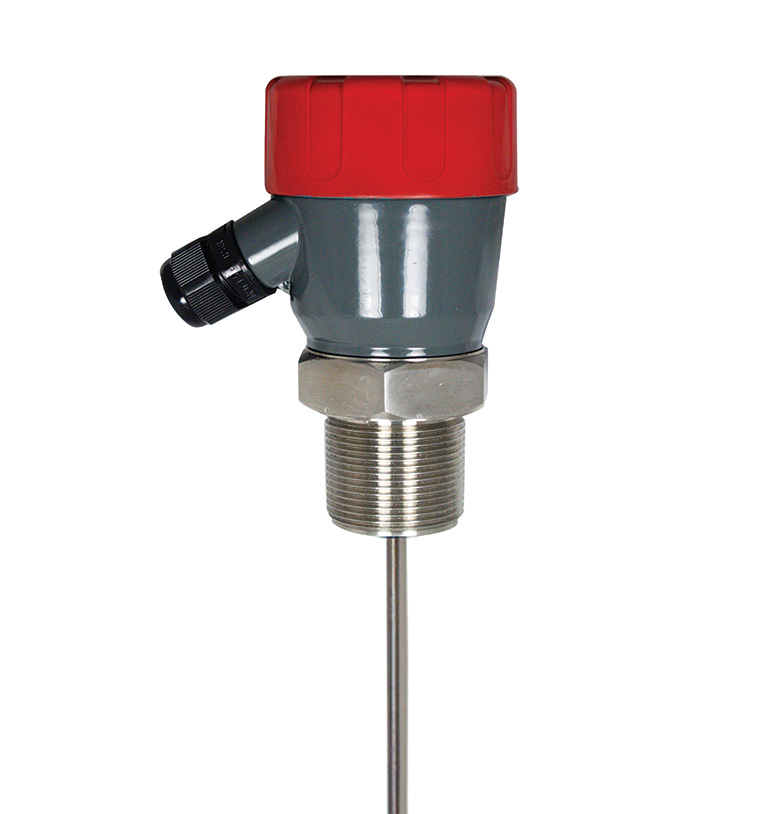

The FLO-CORP Tracer 1000™ LTT1-2G Guided Wave Radar Level Transmitter features time domain reflectometry (TDR) technology for continuous measurement in liquids, solids and slurries, from asphalt blending tanks to peanuts and paper.
Featuring TDR (Time Domain Reflectometry) technology, the Tracer 1000™ second generation Guided Wave Radar level transmitter provides continuous level measurement in liquids, solids and slurries. This innovative device has almost no installation restrictions in tanks, silo’s and bins up to 80 feet. The Tracer 1000™ 2G has a fully isolated 4-20 mA output that can be scaled for tank level or distance. The unit requires 18 to 30 VDC power. The 4-wire device comes standard with a RS-485 COMMS output can be connected to the Tracer Talker™ software for custom configurations and detailed level processing analysis. The Tracer 1000™ 2G ships pre-calibrated precisely for the customer’s application for quick installation and setup. If adjustment is needed in the field the RS485 Communication Tool and Tracer Talker™ software is recommended. TDR technology is not affected by pressure, vacuum, temperature, viscosity, foam or dust. Changes in dielectric constant or coating of the probe do not affect the level measurement due to the dynamic sensing technology programmed into the artificial intelligence of the Tracer 1000™ 2G GWR level transmitter.
Reliable Measurement: High-frequency radar impulses
Easy Operation: Auto-calibration to any dielectric
Maximum Accuracy: Specifically calibrated for customer’s application
Easy Installation: Specifically calibrated for customer’s application
Highly Adaptable: Changes in viscosity, density, or acidity do not effect accuracy. Boiling surfaces, dust, foam, vapor do not effect device performance
Warranty: Five-year warranty available
Range: 1.2′ – 80′ with minimum dielectric constant of 1.0
Measurement: Liquids, Slurries, Solids
Accuracy: ± 0.039″ (1 mm) or 0.02% of measured distance, whichever is greater
Process Mount: Standard: 1.50″ MNPT | Option: 1.50″ ANSI 150lb. flange
Approvals: A22 ATEX Grp II Cat 3 GD T75°C IP67 Tamb -40°C to 65°C
Liquids & Solids
Agriculture, Government Agencies, Iron, Steel & Metal, Life Sciences, Minerals & Mining, Original Equipment Manufacturers, Power & Energy, Pulp & Paper, Refined Products, Renewable Energy
