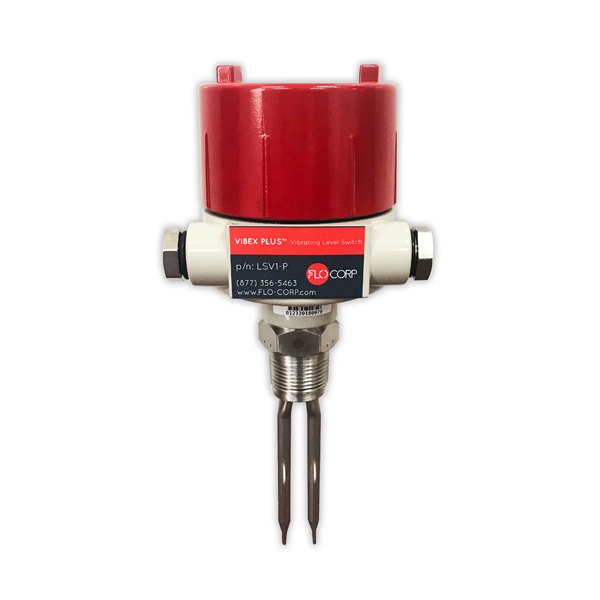

The FLO-CORP Vibex Plus™ LSVP Universal Level Switch detects liquid level within millimeter precision regardless of installation position. Precision monitoring for liquid applications, from filling systems to overflow protection.
Part Number: LSVP

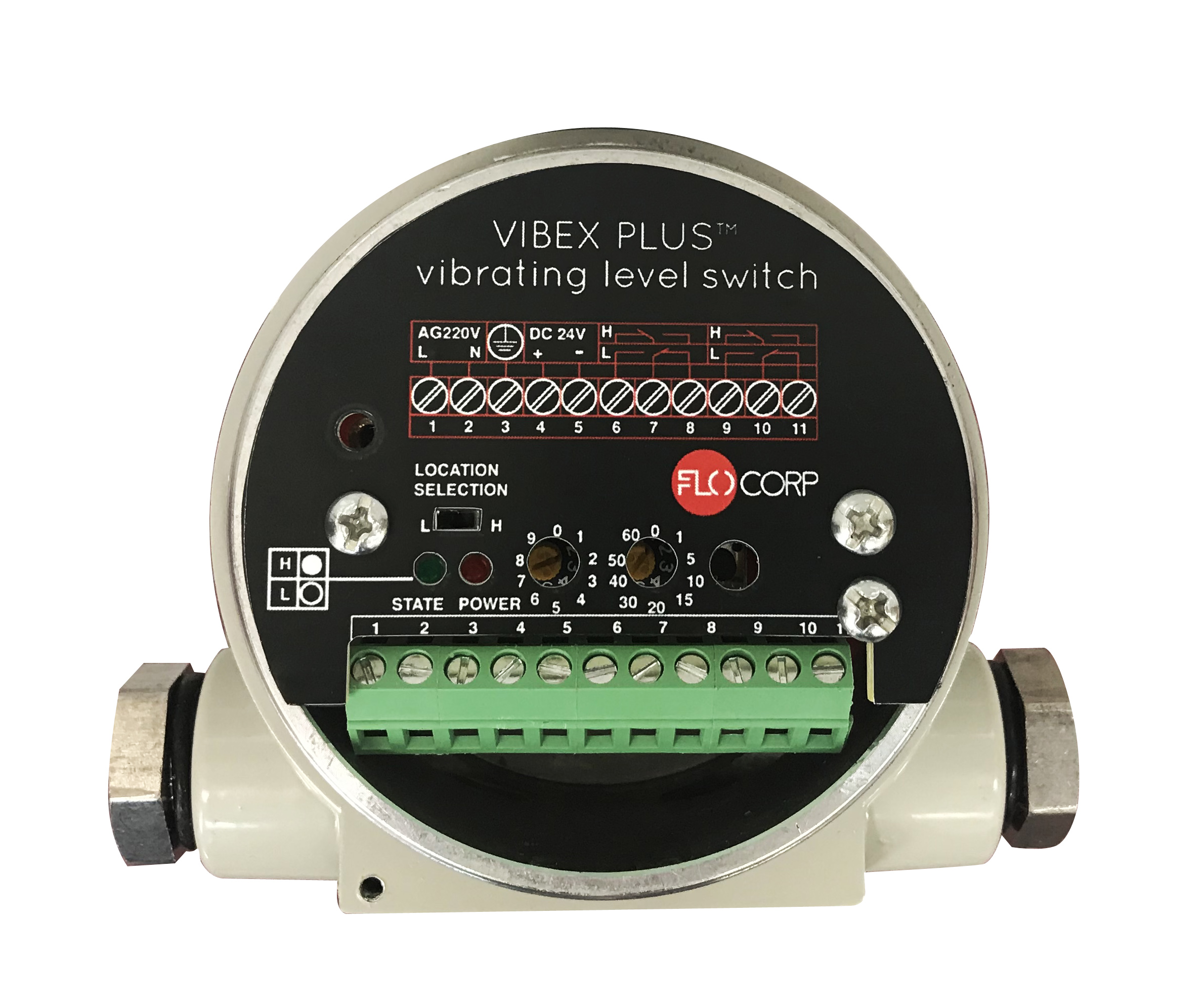

The Vibex Plus™ is a universal level switch for liquids. It reliably detects level within millimeter precision regardless of installation position. The Vibex Plus can be used as an empty or full detector, as overfill protection, dry run protection, or pump protection in vessels and pipelines. The artificial intelligence within the Vibex brain will ignore any coating or deposit on the sensors to provide trouble free service for years. The smart power supply can detect an AC power circuit or DC power. The DPDT relay can be used to switch a pump on or off and also provide a set of contacts for an audible alarm or light. The rugged enclosure provides protection in wet, dirty and hazardous environments.
Easy Installation: Standard 3/4″ NPT
Durable: Highly corrosion resistant 316 stainless steel
Low Maintenance: No moving parts to replace
Saves Money: Low cost of ownership
Reliable Performance: Adapts to changes in process
Warranty: Five-year warranty available
Process Fitting: 316L
Repeatability: 0.004 in (0.1mm)
Hysteresis: approx. 0.08 in with vertical installation
Connection Size: 3/4″ NPT
Food & Beverage, Government Agencies, Iron, Steel & Metal, Minerals & Mining, Power & Energy
The FLO-CORP Ranger Two™ LTRP-2 Ultrasonic Level Transmitter (measurement up to 30ft.) is designed for level and distance measurement in remote monitoring and other difficult outdoor applications. Features include a stainless steel housing for rugged indoor or outdoor use, surge protection, and the ability to connect to one sensor up to 32 sensors optimized with RS-485 output to the CONNEX 3D Cellular Monitor.
Part Number: LTRP-2
