pH and Orb Sensors

Product Information

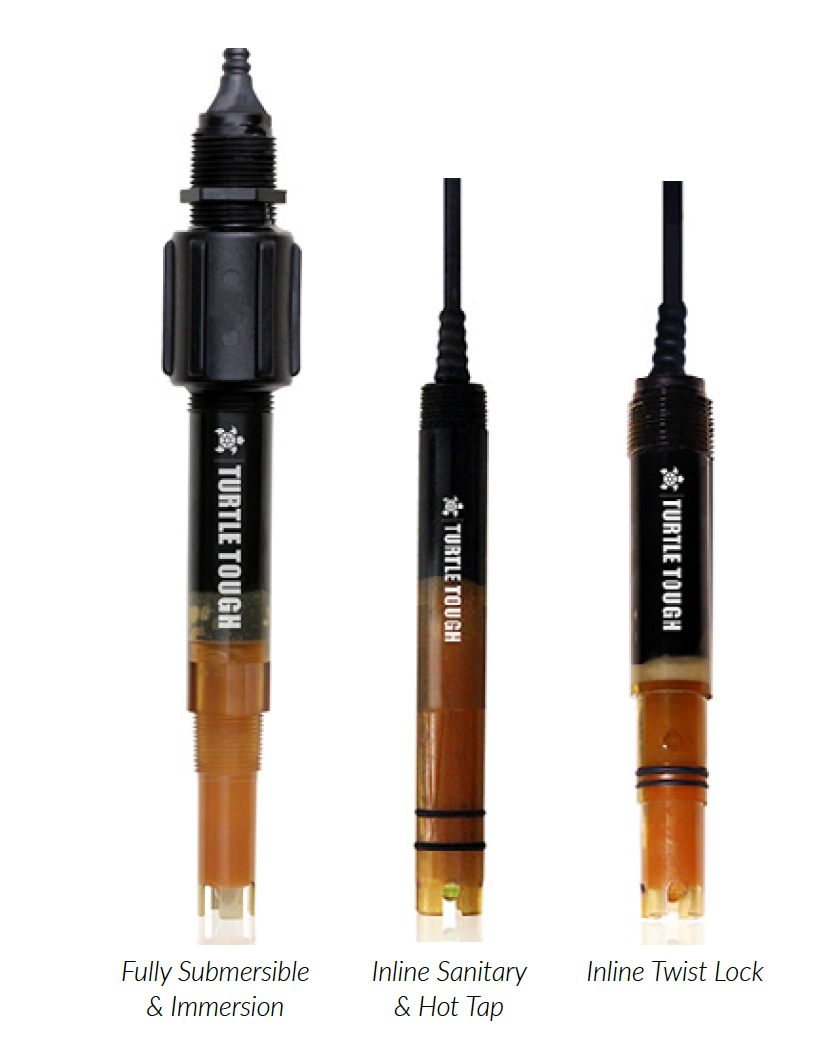

The Ultra Tough series of pH & ORP sensors are made with the very toughest materials and latest technology for exceptional performance in highly aggressive environments. Most importantly they provide accurate and stable measurement at extreme temperatures, and across a wide pH range. This range is available in 3 different body styles: fully submersible, inline sanitary or hot tap and inline twist lock, suiting a wide range of installations.

Request A Quote

Categories: Iron, Steel & Metal, Life Sciences, Minerals & Mining, Original Equipment Manufacturers, Power & Energy, Process Measurements, Pulp & Paper, Refined Products, Renewable Energy
  • Description
  • Additional information
Description
Downloads & Software
Downloads & Software

Data Sheet

The ULTRA TOUGH pH & ORP Sensors are made with the very toughest materials and the latest technology for exceptional performance in highly aggressive environments.

SMART Sensor Technology
SMART Sensors have revolutionized the way our customers manage and maintain sensors. Unlike most other smart sensors, Turtle Tough and FLO-CORP provide you with the option of a propriety digital
signal or an open-source Modbus RTU signal that is universally
accepted. This allows the sensor to be directly connected to your
industrial network without the need for proprietary hardware.
Turtle Tough also provide state-of-the-art analysers and controllers
should you require a sophisticated turnkey control solution. SMART
sensors have the added benefit of storing a detailed performance
history and diagnostics on-board enabling superior sensor management.

Sensors can be cleaned and calibrated offline to facilitate
a hot-swapping maintenance regime. Need to know more about
hot-swapping? Ask our team!

BENEFITS

• Designed for aggressive media and extremely tough applications
• Customise chemical attributes to suit any application
• The world’s toughest break-resistant glass
• Solid State KYNAR reference extremely resilient to contamination
• Impact and chemically resistant RADEL body plastics
• Temperature range: 23ºF to 221ºF (-5°C to 105°C) Standard (Optional -35°C to 150°C)
• pH range: 0 – 14 pH (Optional -4 to +16)
• Acid/Fluoride, Ammonia, Cyanide, Chlorine and Sulphide Gas Resistance
Additional information
Technology

Radar

Medium

Liquids & Solids

Product Type

Transmitters

Industries

Aerospace, Agriculture, Government Agencies, Iron, Steel & Metal, Life Sciences, Minerals & Mining, Original Equipment Manufacturers, Power & Energy, Pulp & Paper, Refined Products, Renewable Energy

Part Number

LTTA, LTTA-P-N1-3-2-AA, LTTA-S-N1-1-1-AA, LTTA-S-N1-1V-2A-NY, LTTA-S-N1-3-2-A-N, LTTA-S-N1-3-2-SN
