Conductivity Sensors

Return to previous page

Product Information

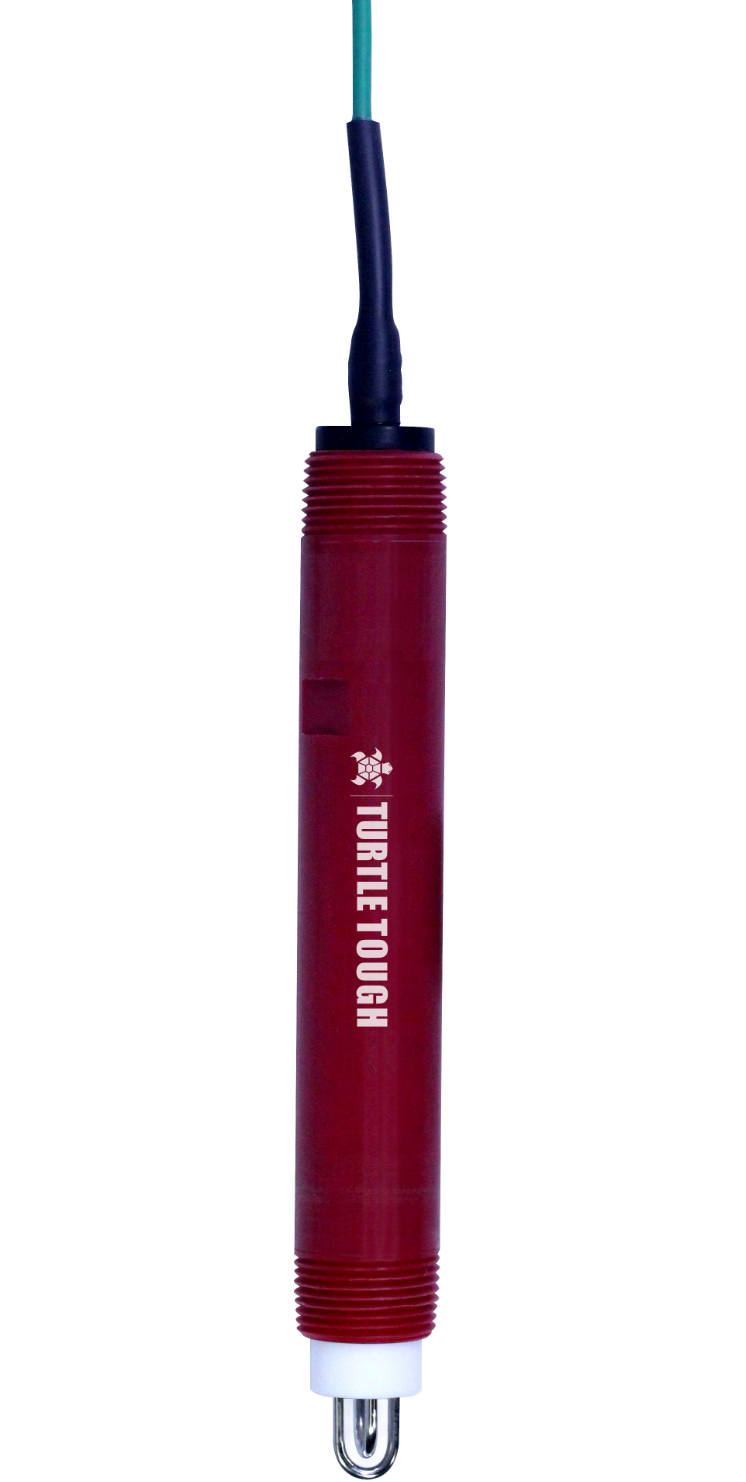

Turtle Tough Conductivity sensors offer superior performance and lifetime compared to any OEM sensor due to the optimal selection of materials, design and workmanship for each built-to-order sensor. The result is that the total cost of ownership is very low due to superior service life and much lower per unit cost when compared to the much lesser quality sensors offered by competitors.

Request A Quote

Categories: Iron, Steel & Metal, Life Sciences, Minerals & Mining, Original Equipment Manufacturers, Power & Energy, Process Measurements, Pulp & Paper, Refined Products, Renewable Energy
  • Description
  • Additional information
Description
Downloads & Software
Downloads & Software

Ultra Tough Smart Conductivity Sensor Data Sheet
Ultra Tough Conductivity DSS Sensor Data Sheet

The smart conductivity sensor with integral RS-485 Modbus RTU communications allows for a simple and fully portable installation. The sensor may be calibrated anywhere (lab, shop or field) and interface with any data acquisition or control system in the field via the RS-485 Modbus RTU output. Temperature and cell constant calibrations can be done with the sensor left in service if grab sample adjustments are desired to agree with reference values. Waterproof and corrosion-resistant NEMA 6P -QCD quick connect plugs come standard for easy seamless hot-swap of sensors from service for cleaning, recalibration, and other maintenance requirements as well as eventual replacement in time.

BENEFITS

  • Smart Sensor (DSS) with MODBUS RTU output connects directly to a PLC
  • Sensor stores temperature and cell constant calibrations including days in use since they were performed
  • Redundant O-ring seals used on all versions for high on-stream reliability and long sensor service lifetime
  • Suitable for a measurement ranging from 20 to 200,000 μS/ cm with outstanding chemical resistance for a wide variety of media.
  • Open front-end geometry resists clogging and reduces maintenance. Ideal for remote installations.
  • Available in cell constants of K=0.1/cm, K=0.2/cm, K=1.0/cm & K=2.0/cm
  • Computed units available are salinity (PSU) and selectable total dissolved solids (TDS) units of NaCl, KCl or 442
Additional information
Technology

Radar

Medium

Liquids & Solids

Product Type

Transmitters

Industries

Aerospace, Agriculture, Government Agencies, Iron, Steel & Metal, Life Sciences, Minerals & Mining, Original Equipment Manufacturers, Power & Energy, Pulp & Paper, Refined Products, Renewable Energy

Part Number

LTTA, LTTA-P-N1-3-2-AA, LTTA-S-N1-1-1-AA, LTTA-S-N1-1V-2A-NY, LTTA-S-N1-3-2-A-N, LTTA-S-N1-3-2-SN
