Product Information

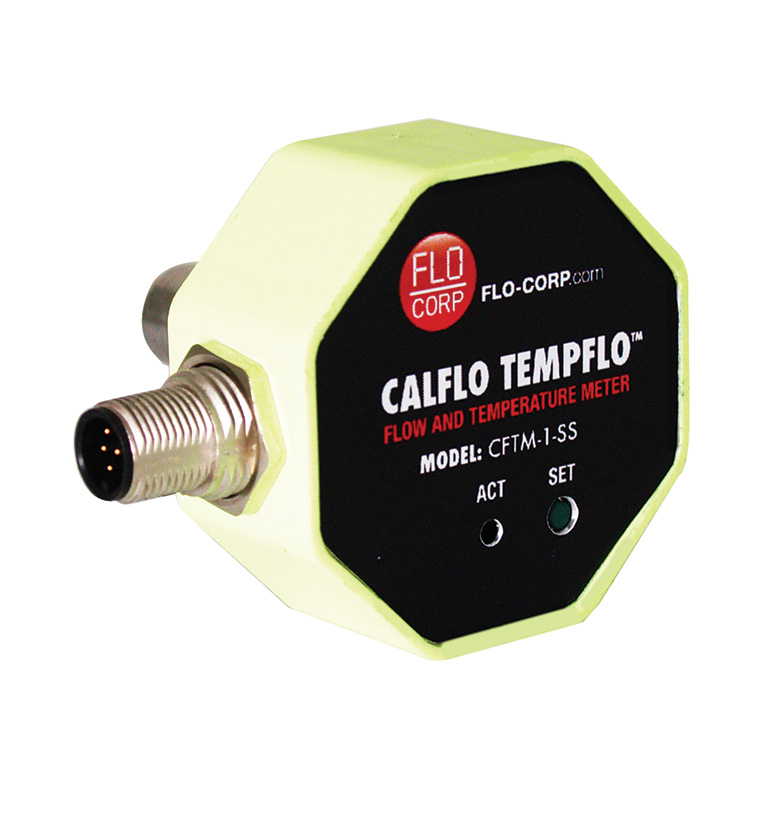

The FLO-CORP CalFlo™ CFTM Thermal Mass Flow and Temperature Meter offers auto-self-calibration for reliable and repeatable results. The ideal solution for liquid applications, from condenser water to cooling flow.
Part Number: CFTM
The CalFlo™ CFTM Thermal Mass Flow and Temperature Meter represents the logical evolution matching modern microprocessor intelligence with over 30 years of thermal flow expertise. With its patent pending auto-self-calibration, the CalFlo™ CFTM is the first truly “set-it and forget-it” flow and temperature solution. No need for expensive on-going calibration as CFTM is designed to maintain accuracy for many years. With standard features such as highly accurate temperature sensing with auto-self-calibration, it becomes the most exciting flow sensor in decades. The Modbus version presents the user with analog flow and temperature, has a totalizing counter, and provides independent high and low adjustable flow and temperature switches. The analog version provides two independent linear 4-20mA outputs for both flow and temperature. A single potentiometer sets the flow range for analog versions.
BENEFITS
Low Maintenance: No moving parts to replace
Easy Operation: Automatic self-calibration for quick start-up and commissioning
Highly Adaptable: Multiple measurements from one measurement point
Saves Money: Low cost of ownership
Easy Installation: Inserts in any line size using a standard 1/2″ NPT
Warranty: Five-year warranty available
Specification Summary
Service: Oil or water-based solutions
Repeatability: < 2%
Process Temperature: -4ºF to 175ºF
Pressure: Up to 1,400 PSI
| Installation Type | Insertion |
|---|---|
| Medium | Liquids |
| Product Type | Meters |
| Industries | Agriculture, Chemical & Petrochemical, Environmental Water & Wastewater, Government Agencies, Life Sciences, Minerals & Mining, Oil & Gas, Original Equipment Manufacturers, Power & Energy, Refined Products |
| Part Number | CFTM |
